/carputer

Here are the specs on the hardware I've used in my carputer:

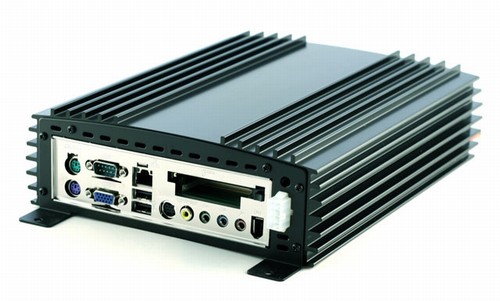

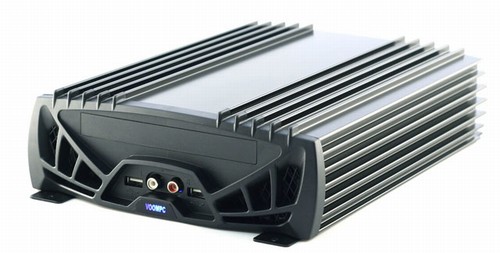

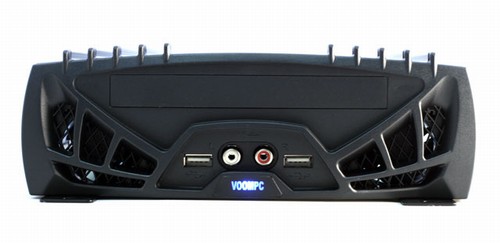

Case [VoomPC-2 CarPC Enclosure]

- Mini-ITX
- Accepts SlimCD, 2.5" drive
- Dimensions: 210(W) x 265(L) x 66(H) in Millimeters
- Holds up to 2 fans for moisture/heat removal
- Includes cable harness
- External RCA audio outputs
- External USB 2.0 Ports

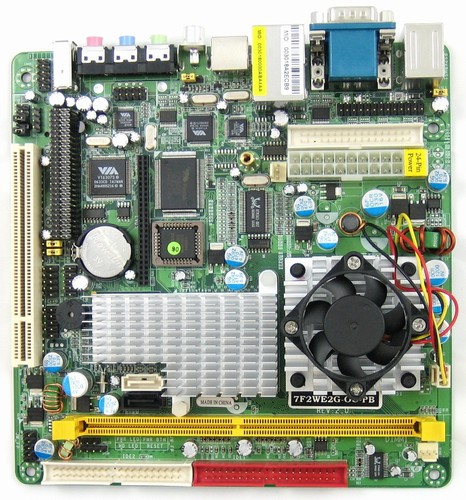

Motherboard [VIA C7 2.0GHz Processor Mini-ITX Express Motherboard J7F2WE2G]

- Mini-ITX Express
- VIA CN700 Northbridge + VT8237RP Southbridge chipset.
- 4 Ultra DMA 133/100/66 IDE Devices Support
- 2 Serial ATA HDDs with RAID 0.1 Function Support
- VIA Unichrome Pro Processor, with 128MB of shared memory (onboard VGA out)
- VIA VT1622A TV Encoder - VIA VT1617A 6-Channel AC 97' Audio CODEC (onboard audio out)
- VIA VT6103CL 10/100 PCI LAN (onboard network interface)
- 1 32-bit PCI slot
- 1 PCI 120-Pin Adapter Connector with Expansion Daughter Boards
- Internal I/O Ports:
  - 3 High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports
  - CPU / Chassis Fan Connectors / 1 26-pin Parallel Connector
  - 9-Pin COM2 Connector / 1 24 -pin ATX Power Connector .
  - CD / AUX AUDIO IN & SPEAK Out .

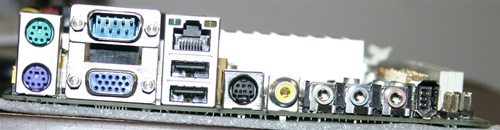

- External I/O Ports:
  - 2 High Speed USB Connectors @ 480 Mbps
  - 1 Serial Port / 1 D-Sub 15-pin VGA Connector
  - 1 PS/2 Mouse & 1 PS/2 Keyboard / 1 RJ45 Connector / 1 Audio I/O
  - 1 IEEE 1394a Connector
  - 1 S-Video Port / 1 RCA Conn for TV-Out
- Award 4MB Flash ROM BIOS
- Standard 24-Pin ATX Power Supply
- Dimensions: 170mm x 170mm

CPU (Processor) [VIA C7 2.0GHz Processor]

- 2.0GHz

RAM (Memory) [1GB DDR2 DIMM PC2-5300 RAM]

- 1GB
- 240-pin DIMM
- DDR2
- PC2-5300
- 667MHz
- Non-ECC Error Checking
- Unbuffered

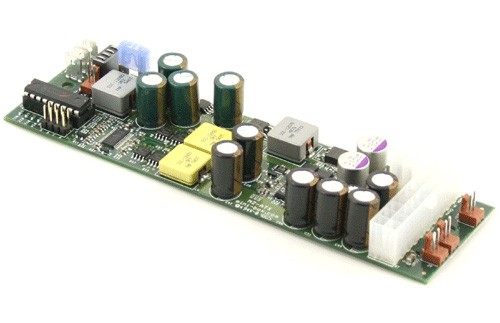

Power Supply [M2-ATX 160W Intelligent DC-DC PSU]

- 160 watts output
- ATX, 6-24V wide input range
- Intelligent Shutdown Controller
- ON/OFF motherboard control
- Survives vehicle engine cranks
- Battery deep discharge prevention
- "Anti-Thump" Amplifier remote control
- 15A automotive fuse (mini-blade)

Hard Drive [Seagate 120GB 2.5" SATA Hard Drive]

- 120GB
- 2.5"
- SATA

CD/DVD-ROM [Panasonic Slot Load CW-8124 DVD-ROM/CD-RW Combo Drive 24x24x24]

- IDE/ATAPI Interface
- Buffer Memory: 2MB
- Slot Loading
- Read Speeds: DVD-ROM 8x, CD-ROM 24x
- Write Speeds: CD-R 24x, CD-RW 24x
